Post-Frame Design & Engineering Services in Wichita, Kansas - Reviewing the Building Design Before Engineering
DESIGN & ENGINEERING ยท WICHITA, KS

Post-Frame Design & Engineering Services in Wichita, KS | Call Our Team if You Need Help With Designing a Building in Wichita

Wichita Pole Barn Builders provides post-frame design and engineering coordination in Wichita & South-Central Kansas so your drawings are ready for the permit office. Our expert teams behind each job have more than 25 years of experience building metal structures from engineered plans. We plan the building with you around all relevant rules and building codes.

In Sedgwick County the line for sealed plans is clear. Post-frame buildings past 14 feet of sidewall, 42 feet of width or 60 feet of length need sealed plans under MABCD's Form #116, and commercial work under the 2024 IBC needs them on every sheet. Call the #1 pole barn planning & design experts in the Wichita area today!

Call 316-688-2046 Now โ†’

Get Your Pole Barn Quote

Tell us about your project. We'll call you back fast.

We'll respond same-week. Need to talk now? Call 316-688-2046.

14/42/60
Form #116 limits, ft
2024
IBC for commercial work
2018
IRC for dwellings
SDC Aโ€“B
Low seismic design category

We Provide Post-Frame Design & Engineering Services in Wichita & South-Central Kansas

Pole barn buildings in the area need to start as a set of engineered calculations before finalizing any kind of framing plans.

  • Wind load basis: 115-120 MPH ultimate
  • Snow load basis: 15-20 PSF
  • Standards referenced: ASABE EP484.3, EP486.3, ANSI/TPI 1
  • Code basis: 2024 IBC, current ASCE 7

Wind and Snow Calculations Specific to This Region

We design to 115 to 120 MPH ultimate wind speed and 15 to 20 PSF ground snow load, referencing current ASCE 7 and 2024 IBC standards, rather than applying a generic national default.

Those numbers drive everything downstream: post spacing, girt and purlin sizing, truss design, and fastener specification all trace back to the load calculations established at this stage.

Technical Specs

  • Wind load basis115-120 MPH ultimate
  • Snow load basis15-20 PSF
  • Standards referencedASABE EP484.3, EP486.3, ANSI/TPI 1
  • Code basis2024 IBC, current ASCE 7
  • Column engineeringLaminated columns where load requires
  • DocumentationPrepared for MABCD and insurance review

How Engineering and Drawings Are Priced

Design and engineering is not sold by the square foot, and it should not be. The deliverable is a calculation set and sealed drawing package, so we quote a fixed fee, or on larger projects a small share of total project cost. Scope starts with whether sealed plans are required at all, since Sedgwick County triggers them past 14 feet of sidewall, 42 feet of width or 60 feet of length under MABCD Form #116. After that come Risk Category, the exposure category at your address, the ASCE 7-22 wind and snow values pulled for that site, laminated column checks under ASABE EP559.2 and truss coordination under ANSI/TPI 1-2022. A stamped drawing is only worth what it was run for, so ask whether yours was run for your soil and exposure. A permit-exempt farm shed under K.S.A. 12-758(b) is a short calculation set; a Risk Category III package sealed for full MABCD review is far longer. Tell us the building and the address for a fee range on the call, confirmed in writing once scope is settled.

Free
Written, itemized estimate
25+ yrs
Metal building experience
14/42/60
Form #116 limits, ft

Following ASABE and TPI Standards

ASABE EP484.3 governs diaphragm design for metal-clad post-frame buildings, EP486.3 governs shallow post foundation design, and ANSI/TPI 1 governs metal plate connected wood truss design.

Laminated columns get specified where load calculations show a single sawn post won't reliably carry the bending stress, not as a default upgrade.

Documentation for Permit Review and Insurance

Engineered drawings and load calculations referencing NFBA's Post-Frame Building Design Manual and applicable ASCE 7 Risk Category are prepared for every project that requires them.

Commercial and many residential-adjacent structures require this documentation for MABCD permit review, and insurers increasingly ask for it during underwriting regardless of occupancy type.

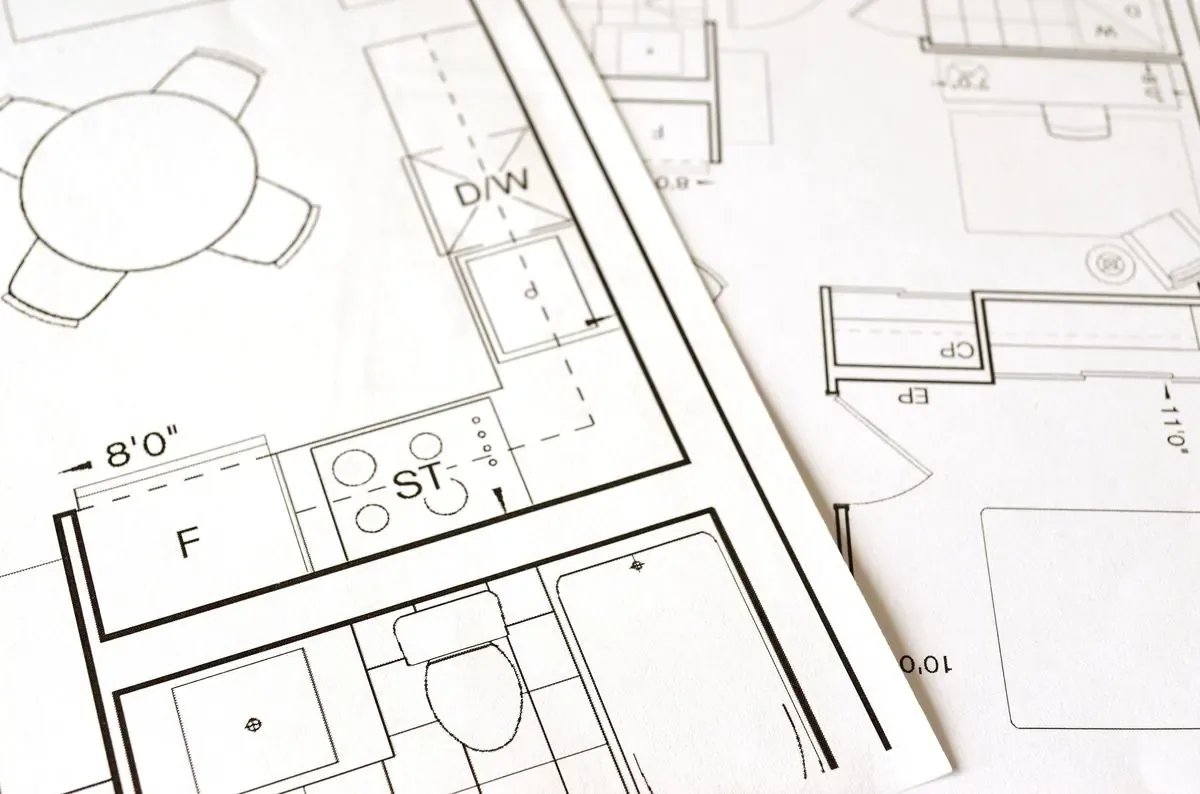

Post-Frame Design & Engineering Services detail - Wichita KS post-frame construction

Why We Build It This Way

Anyone can promise a sturdy building. Here's the difference between a generic sales pitch and an actual engineering answer:

"We can engineer your building."
"Every drawing set ties back to your building's actual Risk Category, Exposure Category, and site-specific soil bearing capacity, not a copy-pasted template."

Standards Behind a Post-Frame Design

Post-frame engineering leans on a few agricultural engineering standards. ASABE EP 484.3 covers diaphragm design of metal-clad, wood-frame buildings, and EP 486.3 covers shallow post and pier foundations.

Mechanically laminated columns are designed under ASABE EP559.2, and trusses under ANSI/TPI 1-2022. For steel-frame buildings these ASABE standards don't apply; steel design standards do.

Wind numbers on the drawings

MABCD's commercial plan guide requires the structural notes to state the ultimate and nominal wind speeds and the exposure category. Under the 2024 IBC those come from ASCE 7-22 for the exact site, so the engineer pulls them for your address.

Exposure category

Wooded or built-up sites are usually Exposure B and open farmland Exposure C. Exposure D only applies beside a large open-water surface, such as a lakeshore lot.

What a Pole Barn Engineer Does

A pole barn engineer is a Kansas-licensed professional engineer who designs post-frame buildings. The engineer works out how deep and wide each post hole has to be to carry the building's weight and resist uplift and overturning, checks that the roof steel can act as a diaphragm passing wind load to the endwalls, and details how each truss ties to its post. The seal on the drawings says those checks were done for your building on your site.

More than one engineer can touch a single building. The trusses arrive with their own design drawings from the truss maker, prepared under ANSI/TPI 1. On a pre-engineered steel building, the supplier's engineer designs the frames, and a Kansas-licensed engineer seals the drawings and load certification.

Bringing your own engineer

If you already work with a structural engineer in Wichita, we can build from their sealed set. We go over the post layout and door openings with them before the permit goes in, so the drawings match how the building will be put together.

Frequently Asked Questions Regarding Post-Frame Building Design

Can you provide stamped engineering for permit submission?
Yes. In Sedgwick County, post-frame buildings past 14 feet of sidewall, 42 feet of width or 60 feet of length need sealed plans under MABCD Form #116, and we prepare them.
Do I need engineered drawings for a small agricultural building?
Many small agricultural buildings are permit-exempt under K.S.A. 12-758(b), but we still run wind and snow load calculations on every project so the structure is genuinely sound.
What is the difference between post-frame and conventional truss engineering?
Post-frame design counts the roof and wall steel as a structural diaphragm sharing load, under ASABE EP484.3. That changes truss spacing, post sizing and connection detailing compared with conventional framing.
How do you decide if a building needs laminated columns?
Sidewall height, door opening width and point loads drive it. Laminated columns get specified under ASABE EP559.2 where calculations show a single sawn post will not carry the bending stress.
Do you handle HOA architectural approval in the suburban areas?
Yes. Many subdivisions around Wichita carry covenants on paint color, eave overhangs and masonry accents, so we design to those requirements from the first drawing rather than reworking plans later.
Do you handle the whole project, or do I need to hire separate trades?
We manage framing, foundation and roofing directly and coordinate concrete, electrical and plumbing trades for you. If you already have your own structural engineer, we can build from their sealed set.
Can I make changes to the design after we have started?
Minor changes are usually workable. We tell you upfront if a change affects price, timeline or the engineered load path before we proceed, so nothing surprises you later.
